Mono mode allows you to drive the left speaker by one power amplifier and the right speaker by another power amplifier.
Power Amplifiers must be controlled by a product in pre-amp (variable output) mode. Otherwise you risk maximum volume output which may damage your speakers.
Unbalanced connection in mono mode

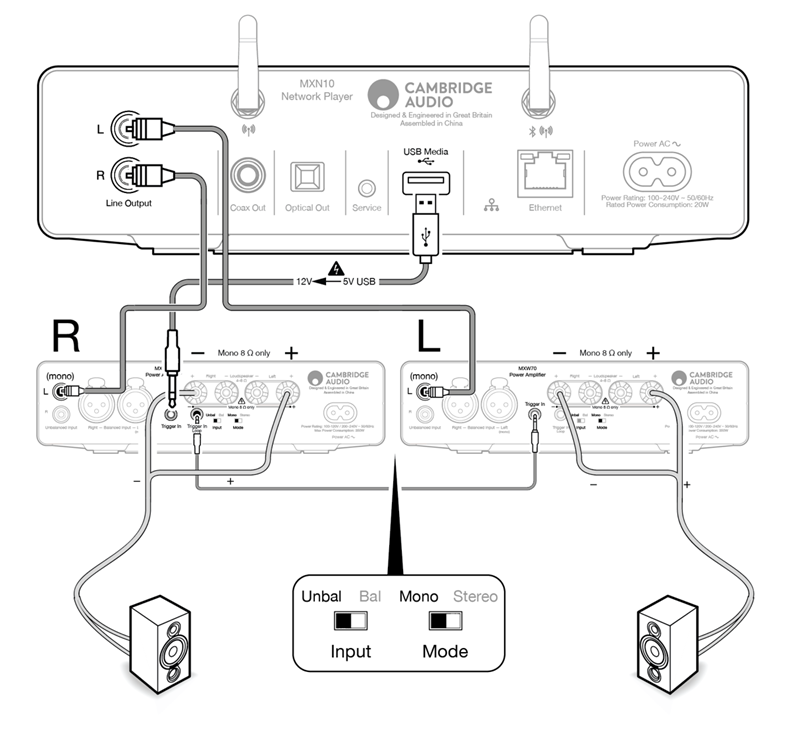

1.The diagram below shows how to drive a pair of MXW70's connected to a MXN10 using an unbalanced connection.

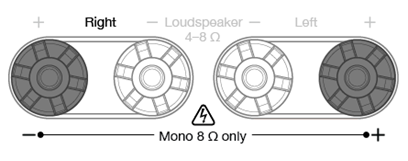

2. In the Mono mode, only 8ohm is supported and the red terminal of the “Right” is the negative output.
3. Turn on the Pre-Amp mode in the StreamMagic app, to ensure the volume increases/decreases in sync.
4. Set the Mode switch in Mono mode and ensure that the unbalanced switch has been selected.
Balanced connection in mono mode

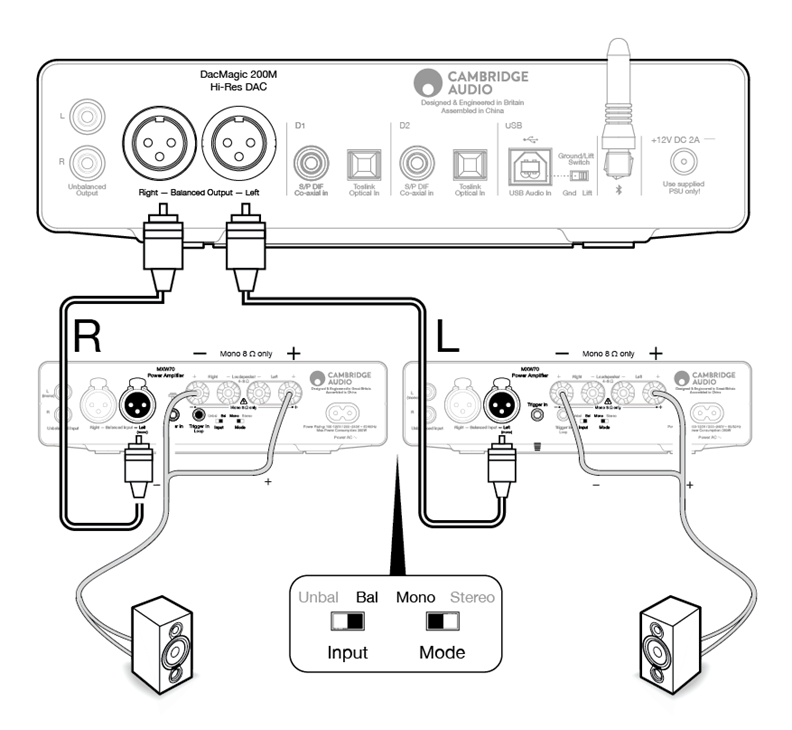

The diagram below shows how to drive a pair of MXW70's connected to a DacMagic200M using the balanced connection.
the Mode switch in Mono mode and ensure that the balanced switch has been selected.
